Extended Carbide Rotary File 6mm 1/4" Shank Tungsten Carbide Grinding Head, Woodworking Milling Cutter, Metal Deburring Tool
Extended Carbide Rotary File 6mm 1/4" Shank Tungsten Carbide Grinding Head, Woodworking Milling Cutter, Metal Deburring Tool
Regular price
$32.70 USD
Regular price
$0.00 USD
Sale price
$32.70 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

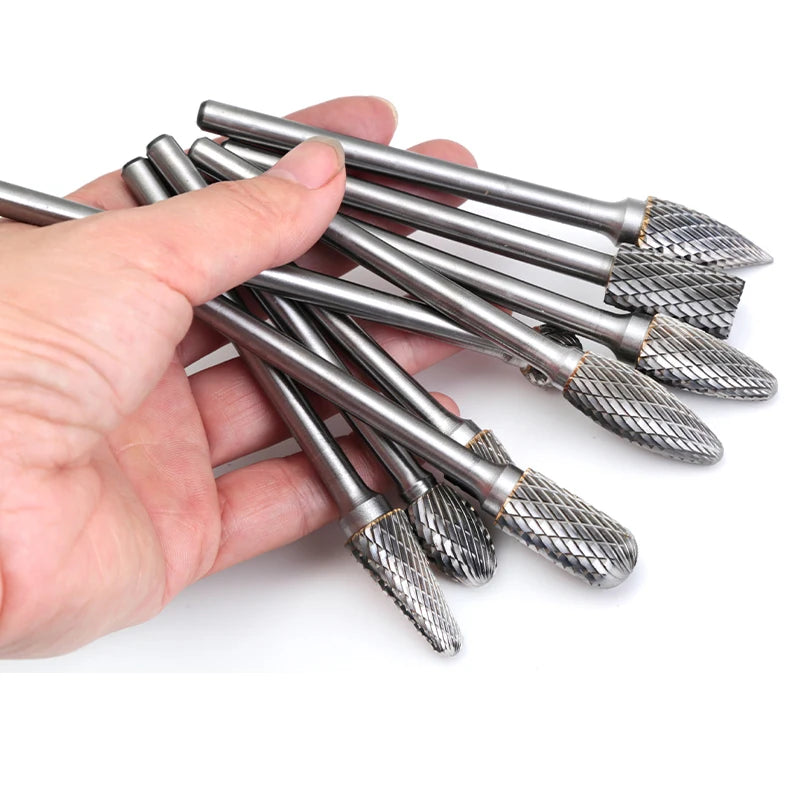

The Extended Shank Tungsten Carbide Rotary Files (Burrs) are heavy-duty precision cutting tools engineered for deep cavity access, internal contour milling, weld seam leveling, and aggressive metal deburring. Manufactured from premium YG8 micro-grain tungsten carbide (WC-Co) hardened to over HRC 70 and brazed onto high-strength extended 6mm (1/4") steel shanks, these long-reach rotary burrs provide superior chip clearance, chatter-free cutting stability, and exceptional service life across ferrous and non-ferrous workpieces.
Technical Specifications
| Tool Material (研磨材料) | Micro-grain Tungsten Carbide (YG8 / WC-Co alloy, hardness HRC ≥ 70) with hardened 40Cr steel extended shank |

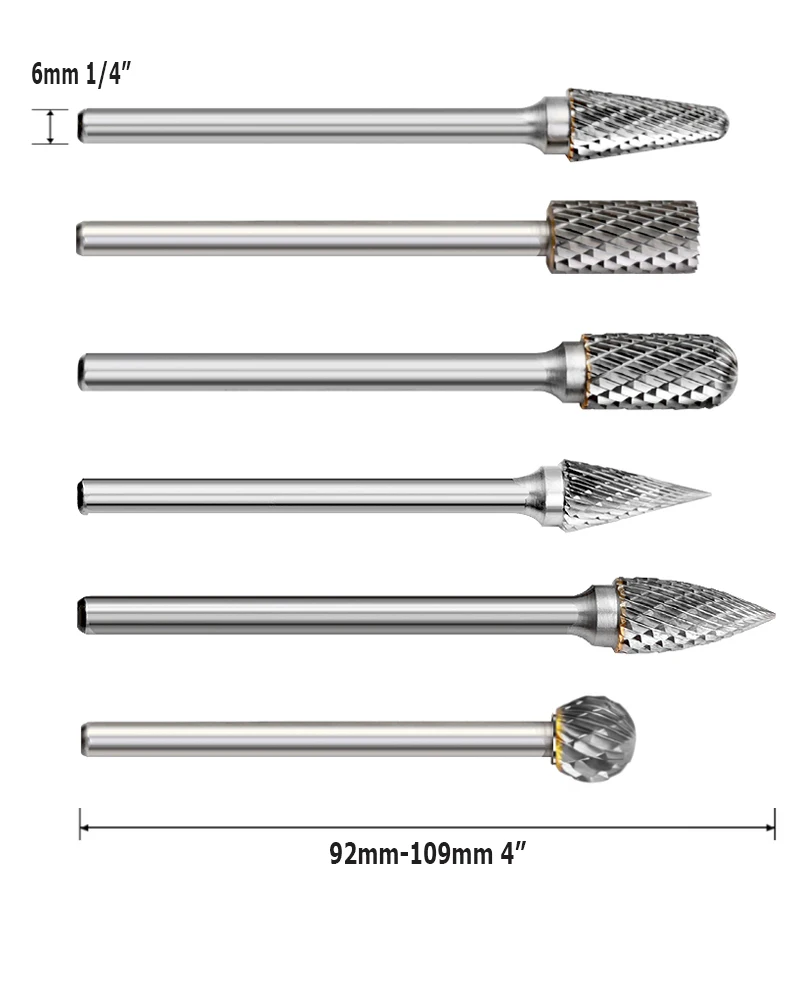

| Shank Diameter | 6 mm (approx. 1/4 inch), precision ground for concentric chucking |

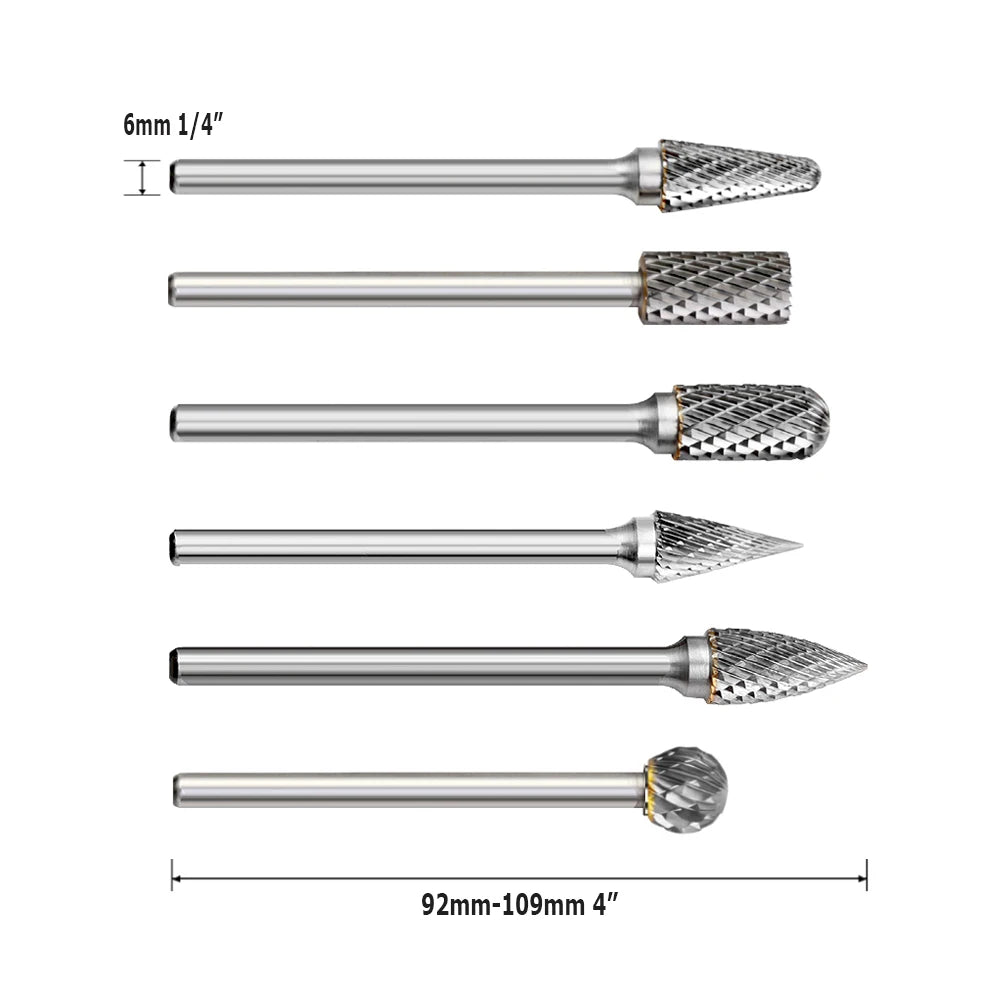

| Total Length | 100 mm – 103 mm (approx. 4 inches) extended long reach |
| Head Profile & Cut Type | Cylindrical flat end with end teeth (Type A), Double Cut (cross-cut diamond fluting) |
| Machining Application (打磨应用) | Deep recess deburring, weld bead removal, pipe bore smoothing, casting gate blending, mold porting, contour carving |
| Suitable Materials (适用材料类型) | Stainless steel, carbon steel, cast iron, alloy steel, copper, brass, aluminum, hardwood, stone, and rigid composites |
| Compatible Machines | Pneumatic die grinders, high-speed electric rotary tools, flexible shaft machines, CNC routing spindles with 6mm or 1/4" collets |
| Recommended Operating Speed | 6,000 – 30,000 RPM (reduce RPM proportionally when running extended shanks in deep bores) |

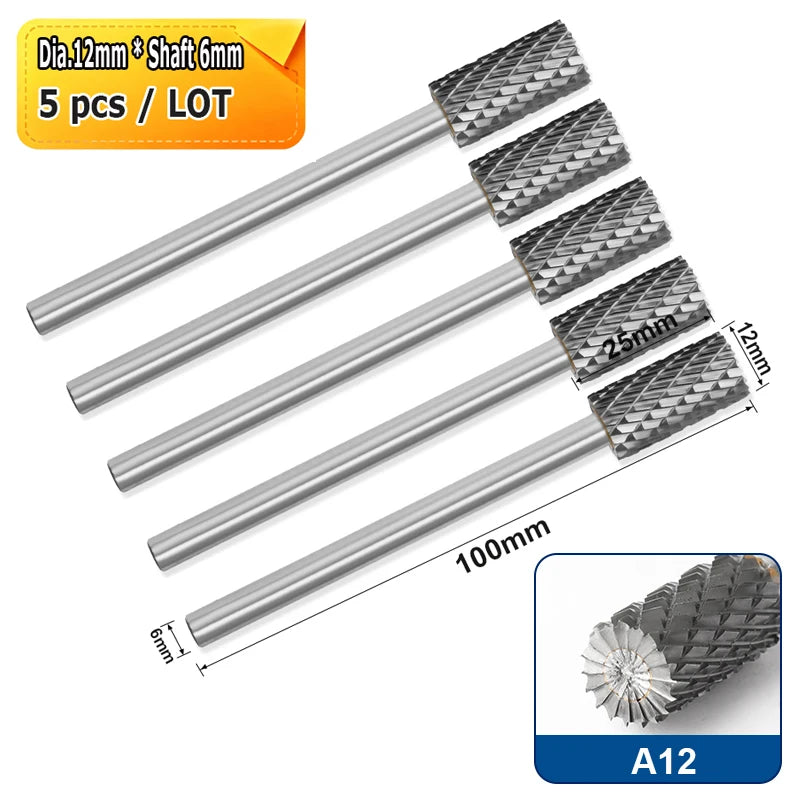

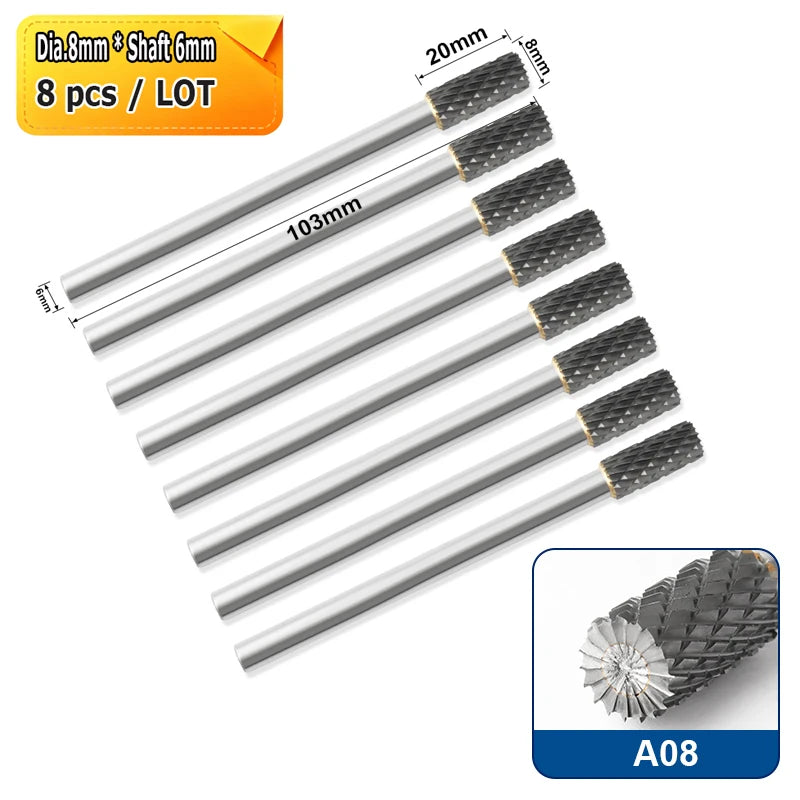

| Available Configurations | A08 (Head: 8mm x 20mm, Total Length: 103mm, 8 pcs/pack); A12 (Head: 12mm x 25mm, Total Length: 100mm, 5 pcs/pack) |
Key Performance Advantages
- Extended Deep Reach: The 100mm–103mm extended shank reaches narrow engine ports, interior pipe weld roots, deep die cavities, and recessed tooling fixtures that standard-length burrs cannot access.
- Double-Cut Fluting Geometry: Cross-cut diamond flutes produce small, granular metal chips rather than long slivers, minimizing loading, reducing operator fatigue, and delivering smooth cutting feedback.
- End Cut Teeth: Equipped with cutting teeth on the flat cylindrical face, enabling face milling, bottom cavity squaring, and blind bore end deburring.
- High Wear & Thermal Resistance: High-grade tungsten carbide retains sharp cutting edges under elevated operating temperatures without softening or annealing.

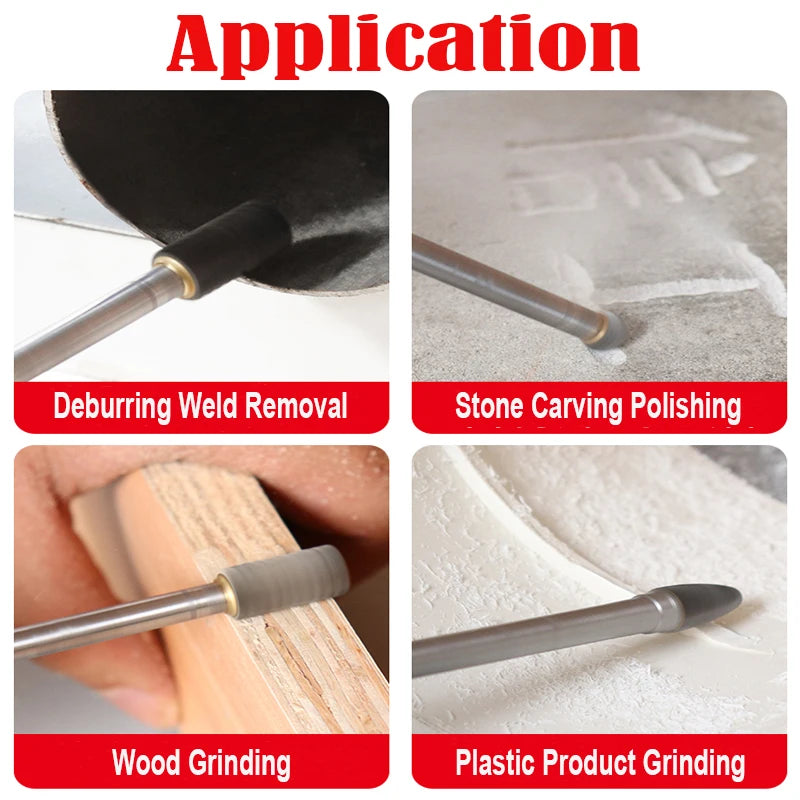

Application & Operating Guidelines

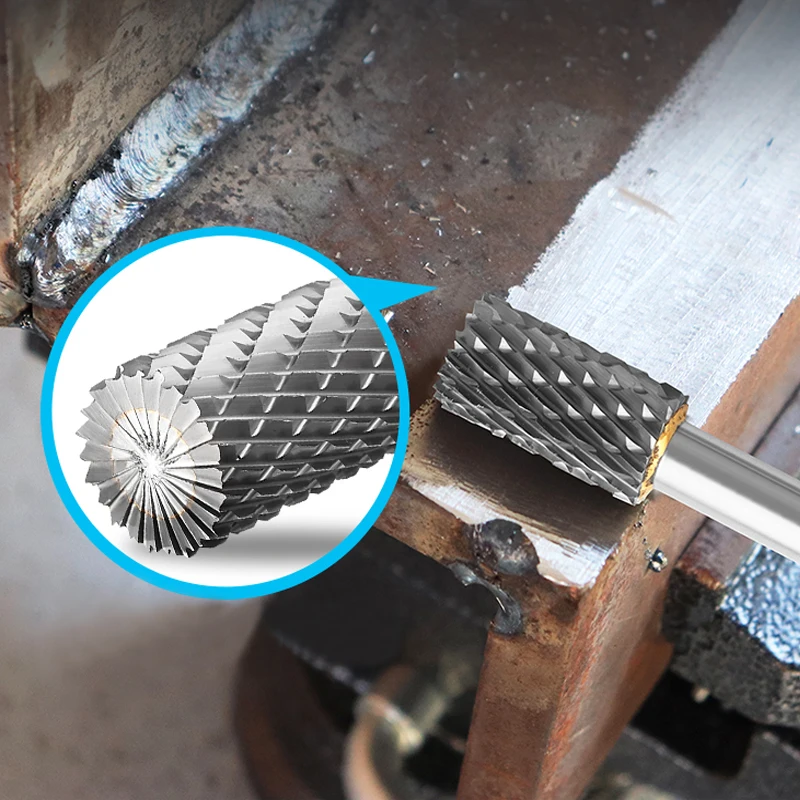

- Metal Deburring & Weld Removal: Mill down weld beads, clean up flame-cut edges, and deburr pipe interiors on steel, iron, and alloy components.
- Die & Mold Refurbishment: Clean gate runners, smooth injection mold contours, and dress hardened steel dies.
- Stone Carving & Polishing: Shape marble, granite, and jade details using controlled rotary grinding motions.
- Wood & Plastic Sculpting: Rapidly excavate, carve, and finish hardwoods and composite polymers without clogging.
- Safety Note: Always ensure at least 25mm of shank engagement in the collet. Start tool at low speed and ramp up inside the workpiece cavity to avoid shank deflection.
