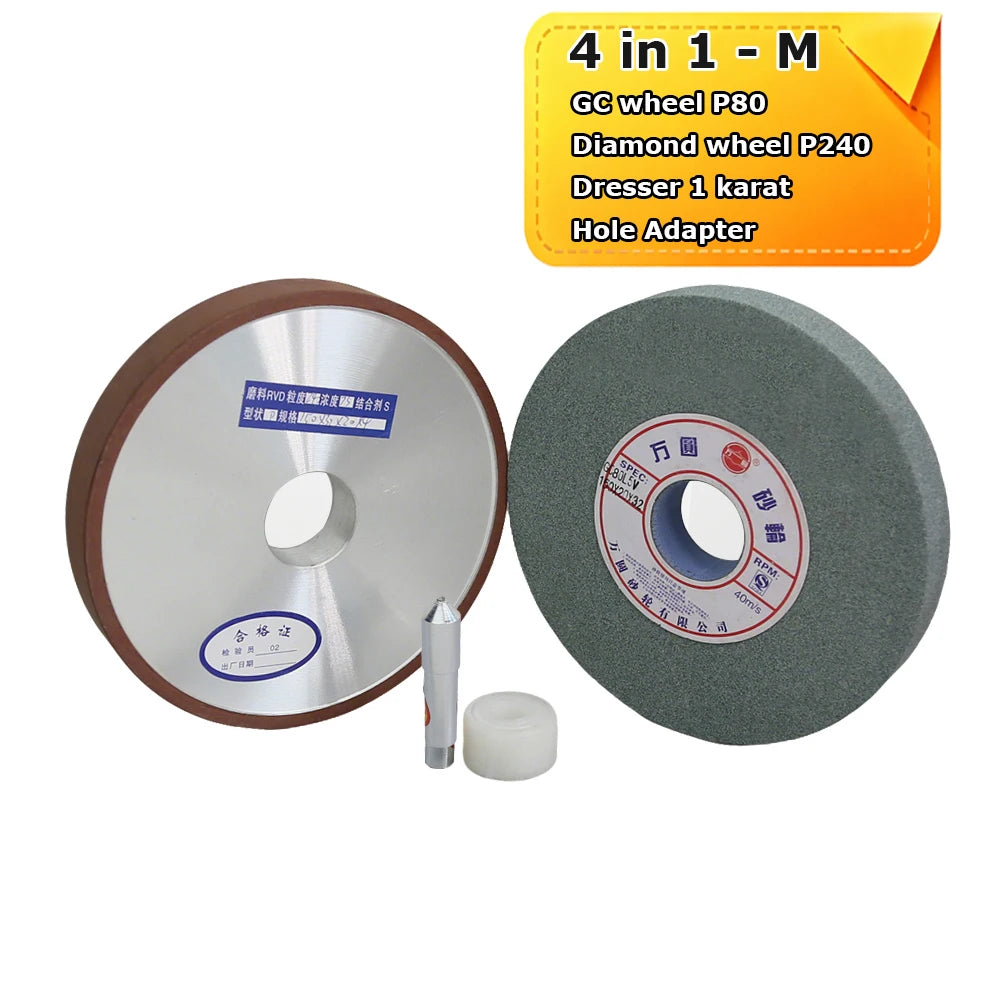

6" 150mm 4-in-1 Abrasive Wheel Kit Diamond Resin Ceramic Green SiC Wheels Dresser Arbor Bushings for Welding Blade Sharpening

Technical Specifications

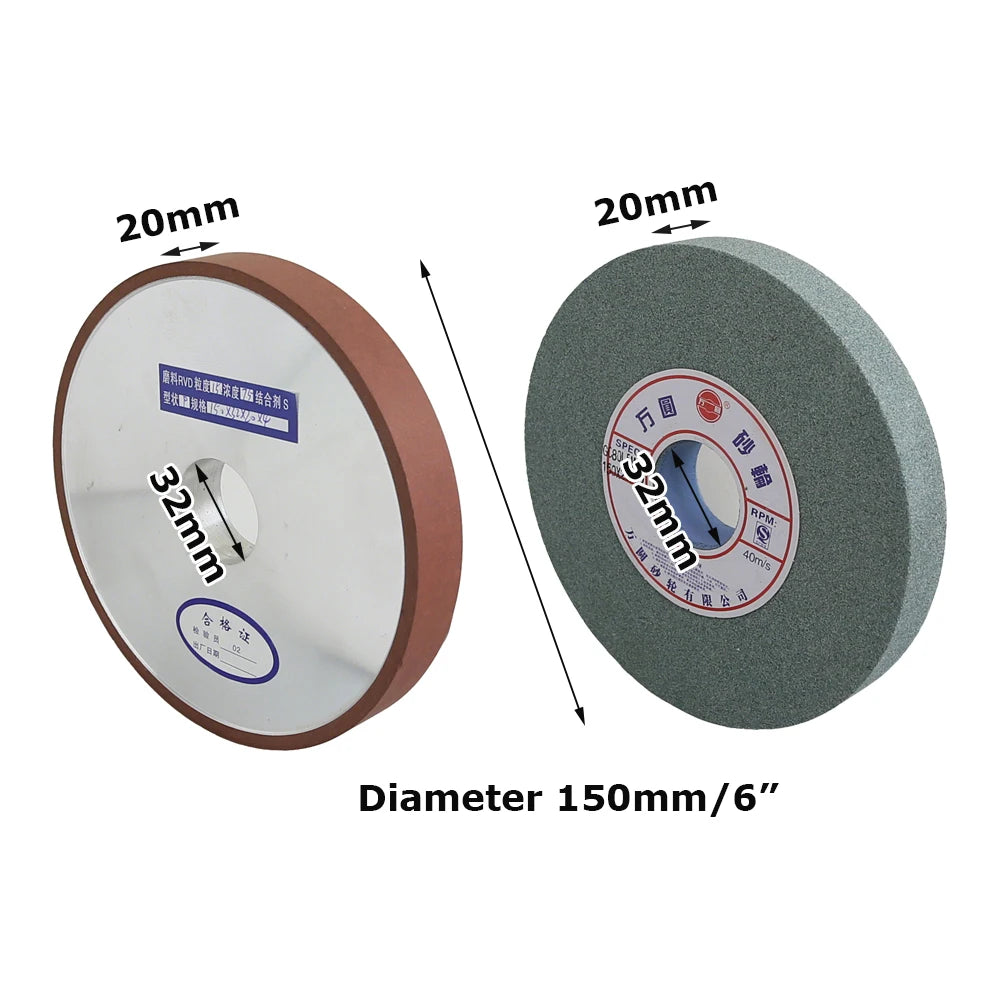

• Dimensions: 150 mm × 20 mm × 32 mm (6" × 3/4" × 1-1/4")

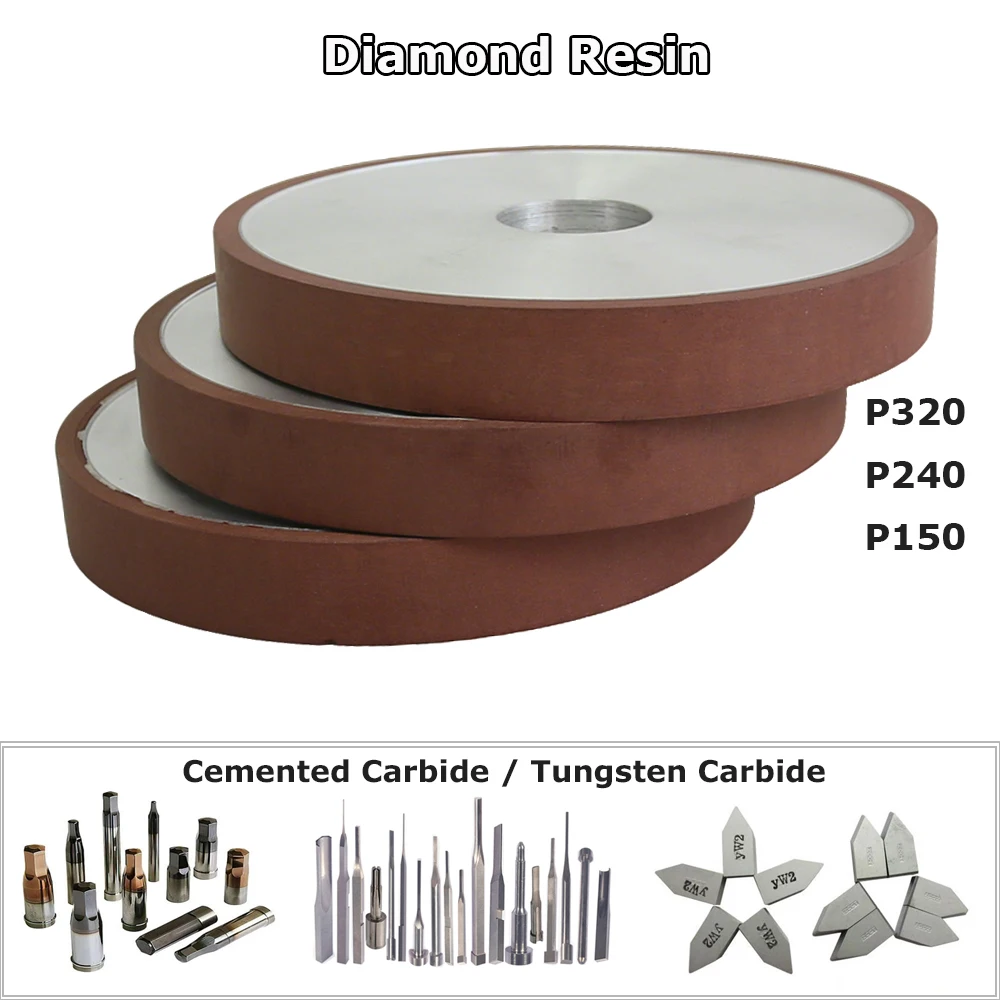

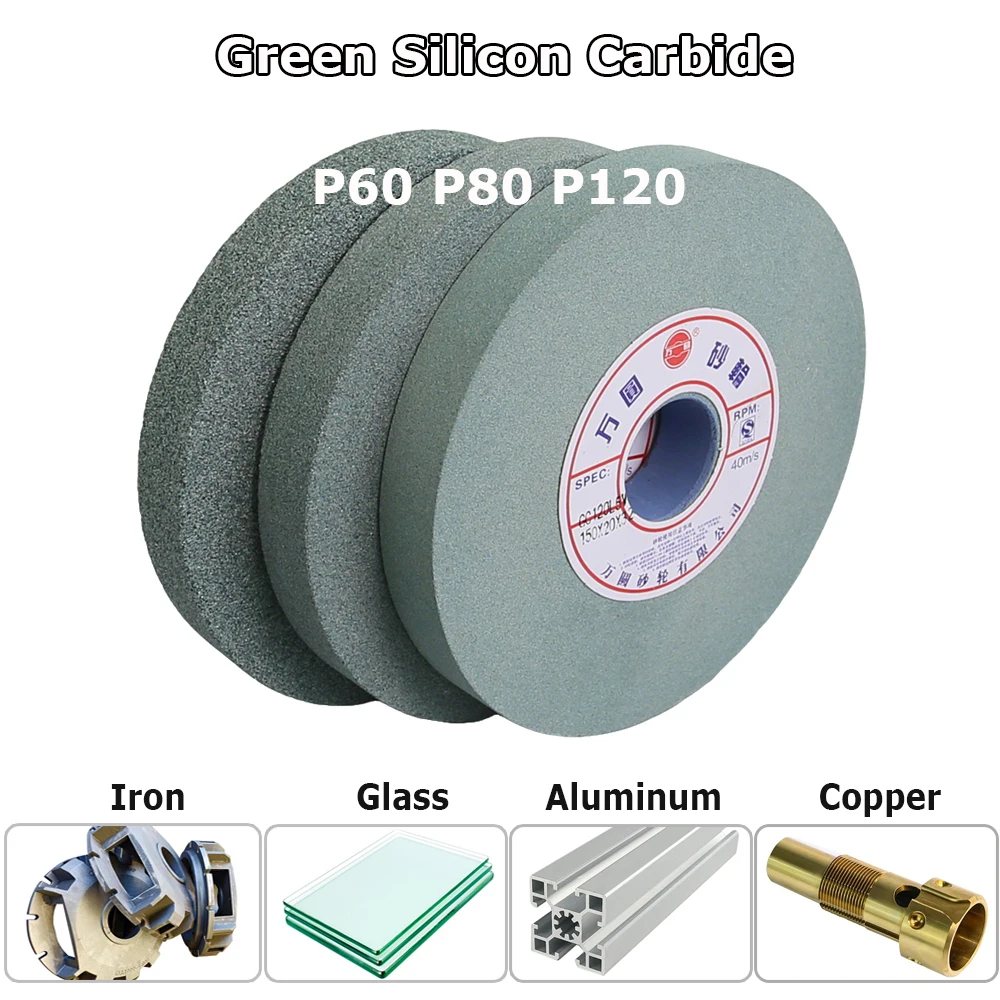

• Abrasive Material: Green Silicon Carbide (GC), Synthetic Diamond (Resin Bond)
• Sanding Application: Grinding, Sharpening, Relieving, Dressing
• Suitable Materials: Tungsten Carbide, Brazed Carbide Tools, Tool Steel, Hardened Steel

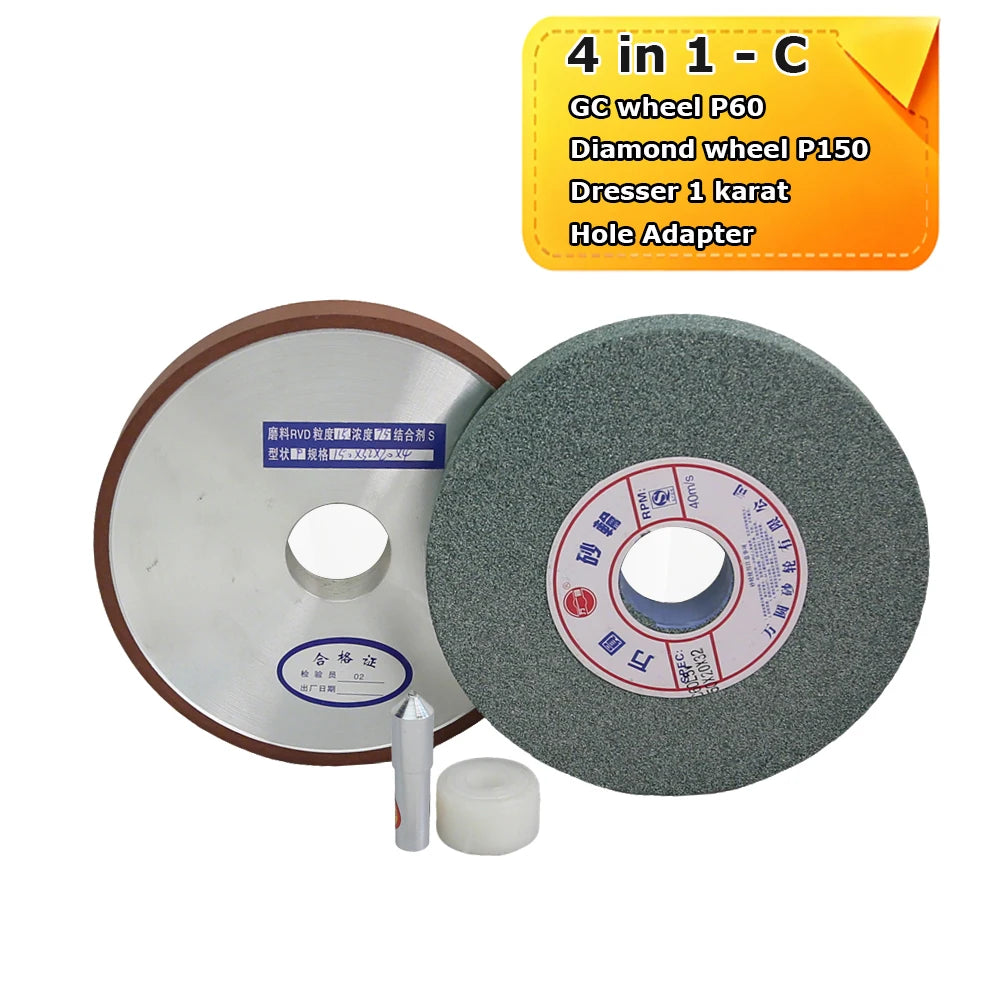

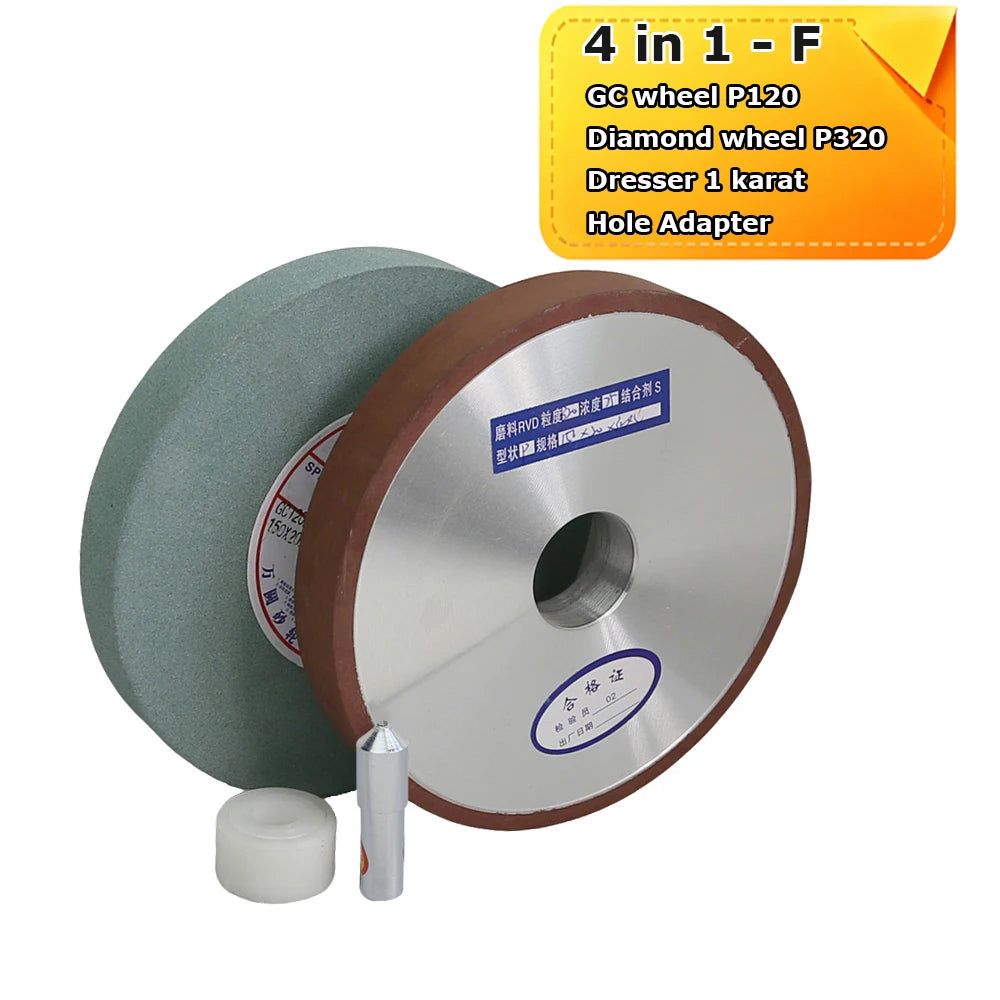

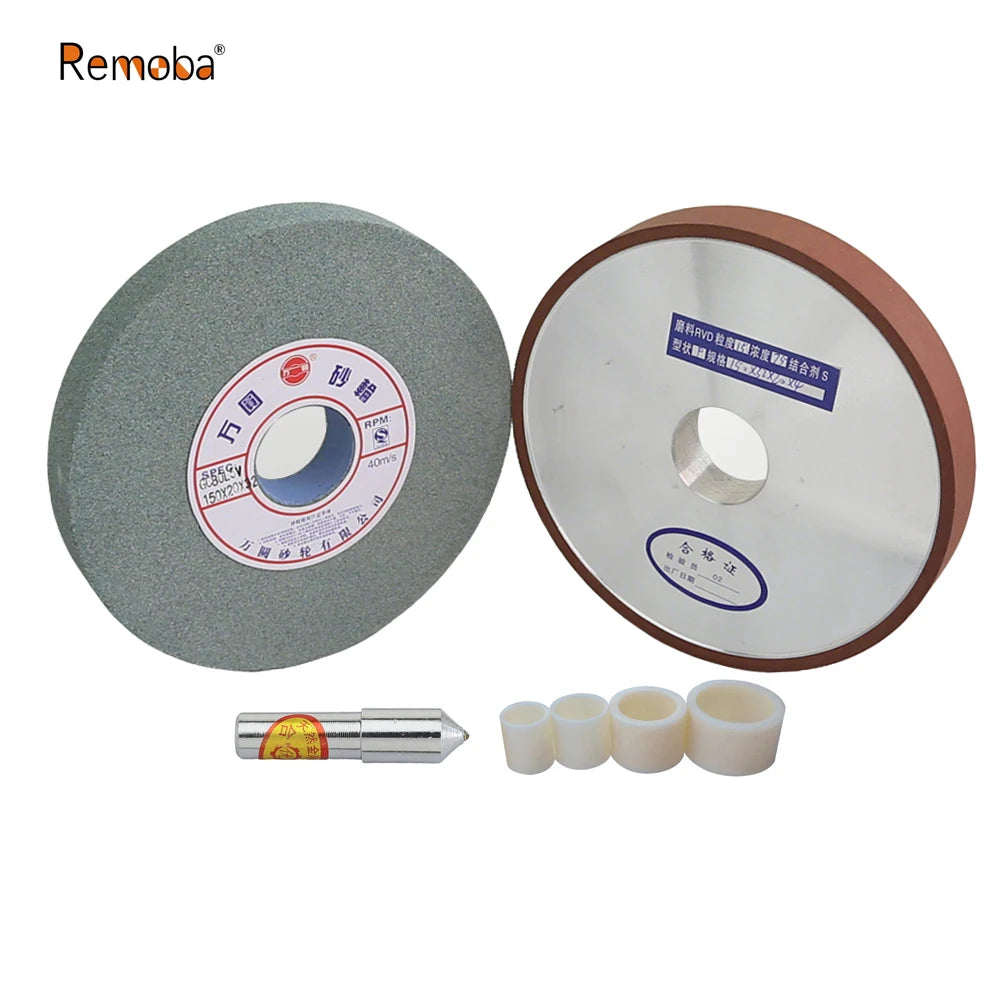

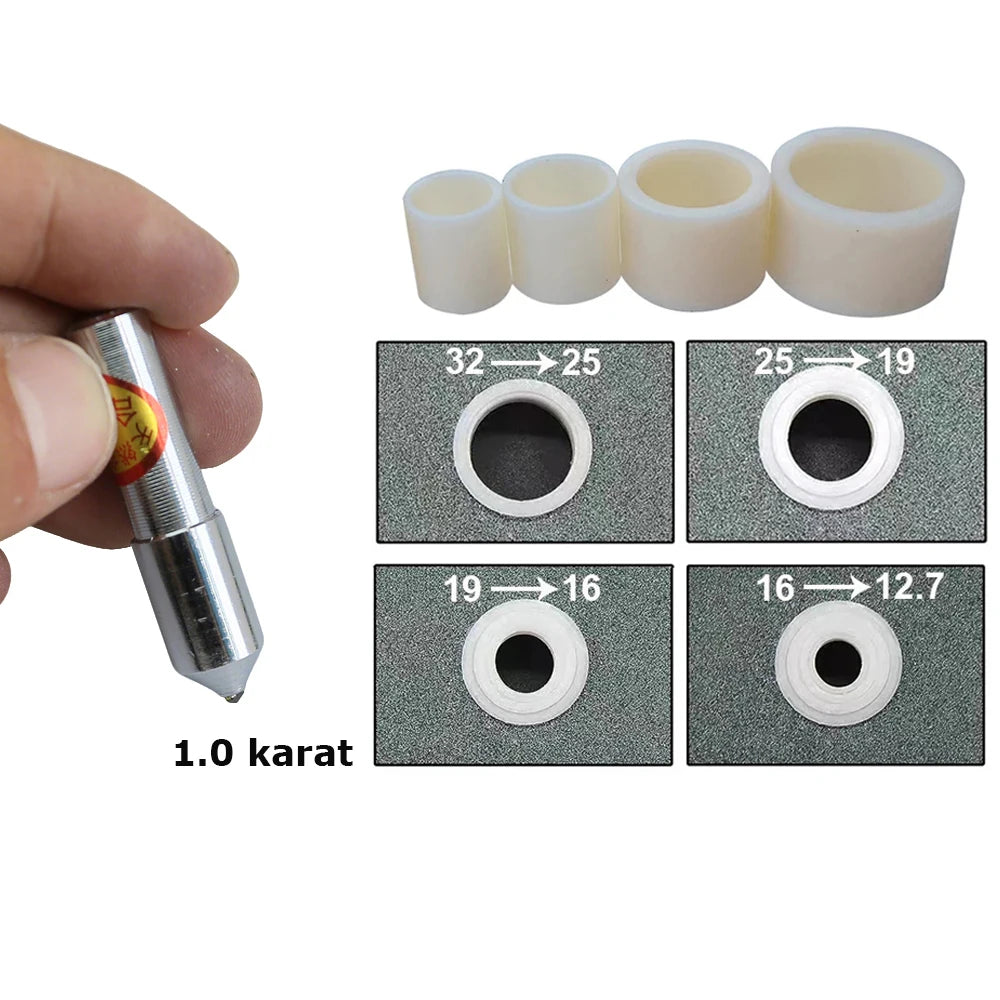

• Kit Includes: Green SiC Grinding Wheel, Diamond Resin Grinding Wheel, Diamond Wheel Dresser, Arbor Bushings

Application Overview

Engineered specifically for brazed carbide turning tools and tungsten carbide-tipped (TCT) saw blades. The Green Silicon Carbide wheel handles the steel blade body and back relief, while the resin-bonded diamond wheel finishes the tungsten carbide cutting edge.

Step 1: Grind the Steel Body / Tooth Back (Green SiC Wheel)

First, grind the steel shank or tooth back using the Green SiC wheel. Create a relief angle 2°–5° larger than the carbide tip (typically 25°–30° for the steel body versus 20° for the carbide). Lightly grind dry or with minimal cooling, removing approximately 0.5–1.0 mm of material.

Step 2: Rough Grinding the Carbide Cutting Edge (Diamond Wheel)

Switch to the resin-bonded diamond wheel. Apply light pressure and feed along the original rake/clearance angle. Limit depth of cut to ≤0.02–0.05 mm per pass. Always perform down-grinding (feed toward the tool root) to minimize chipping. Remove worn layers and minor chips. Use water-soluble cutting fluid coolant (3–5 L/min) to prevent thermal cracking.

Wheel Dressing & Maintenance

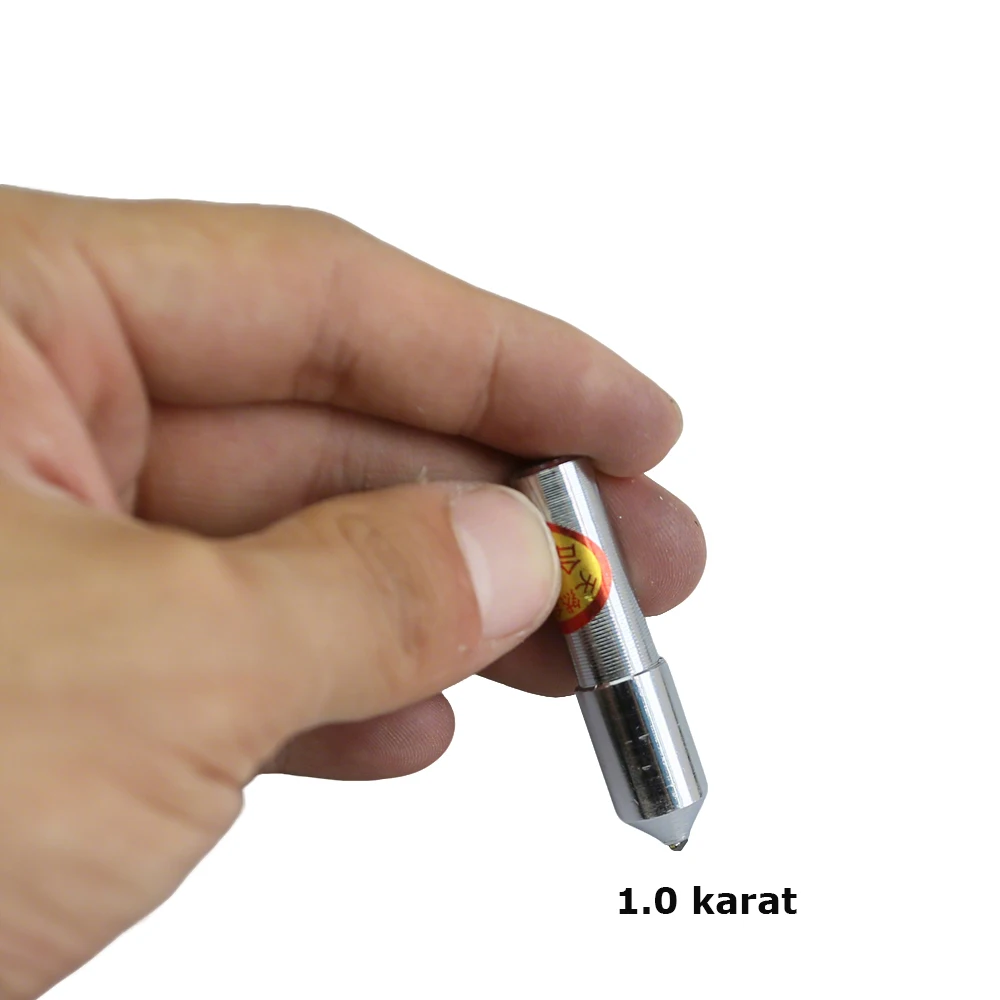

Regularly dress the diamond wheel using the included diamond dressing pen. This exposes fresh abrasive grains, keeps the profile flat, and prevents wheel glazing or loading (clogging).
